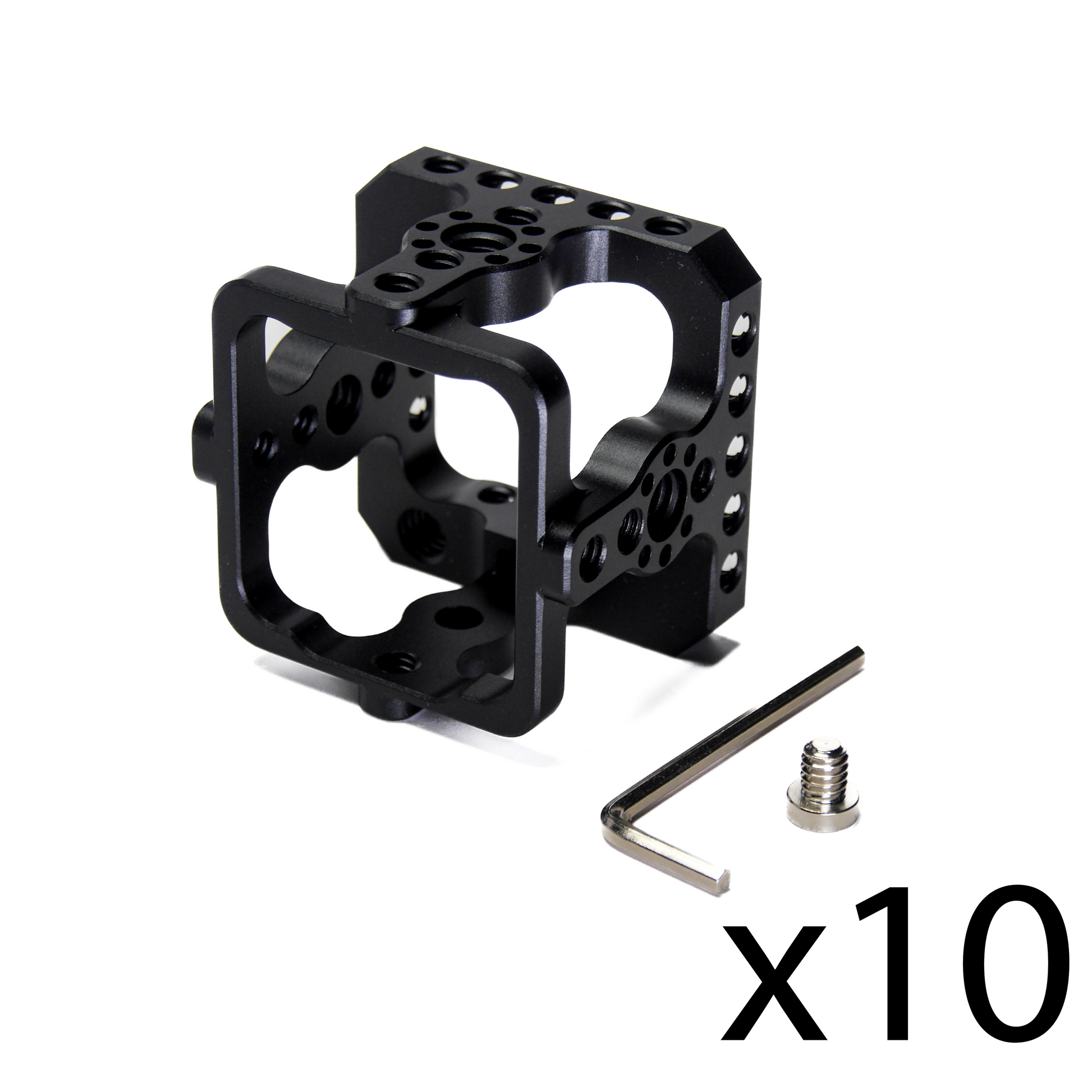

10x of our Marshall CV500 Cage
Engineered to maximize mounting options while protecting critical ports and cable connections, the XLCS Designs Camera Cage transforms Marshall CV500-Series cameras into highly adaptable production tools without sacrificing the compact footprint that makes these cameras so versatile.

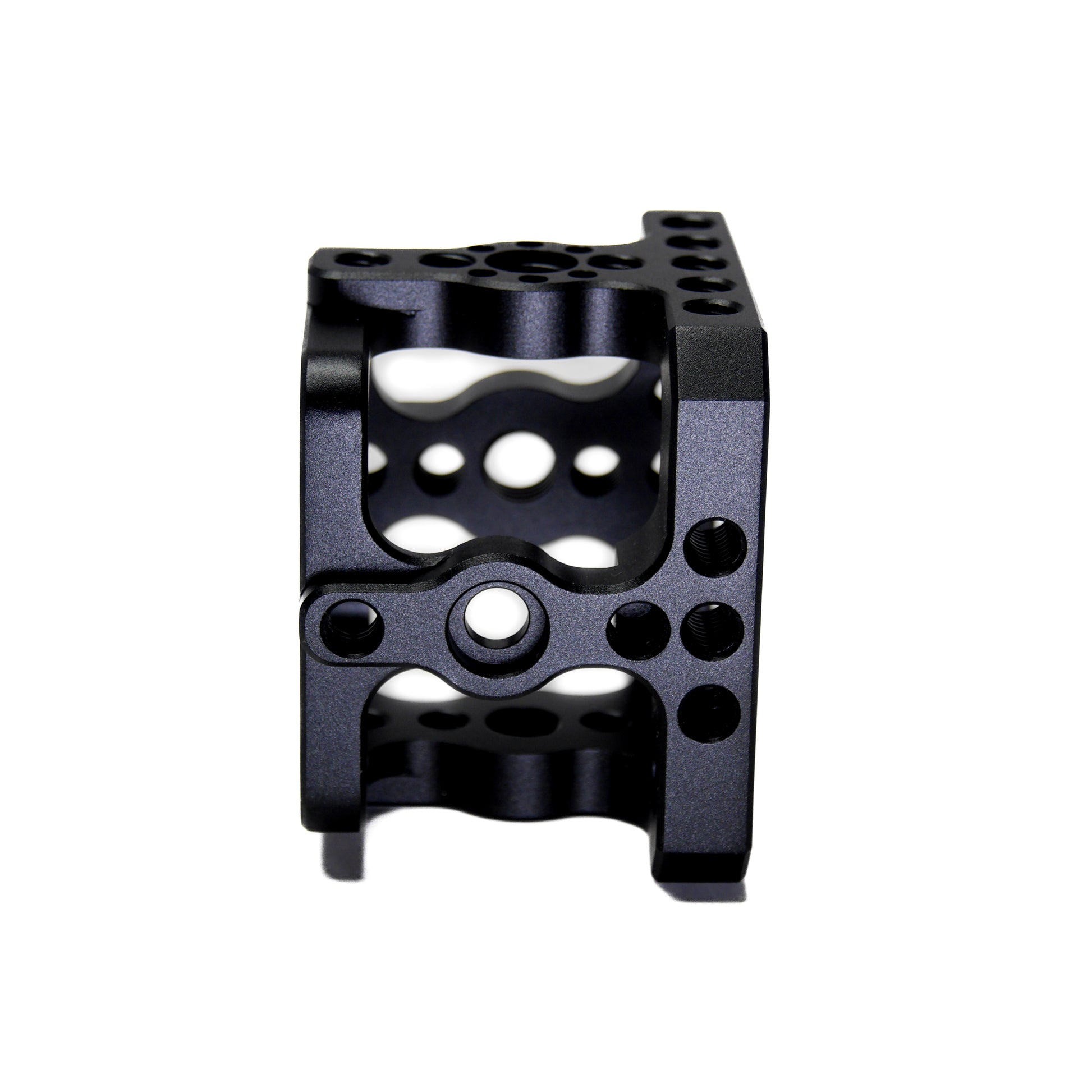

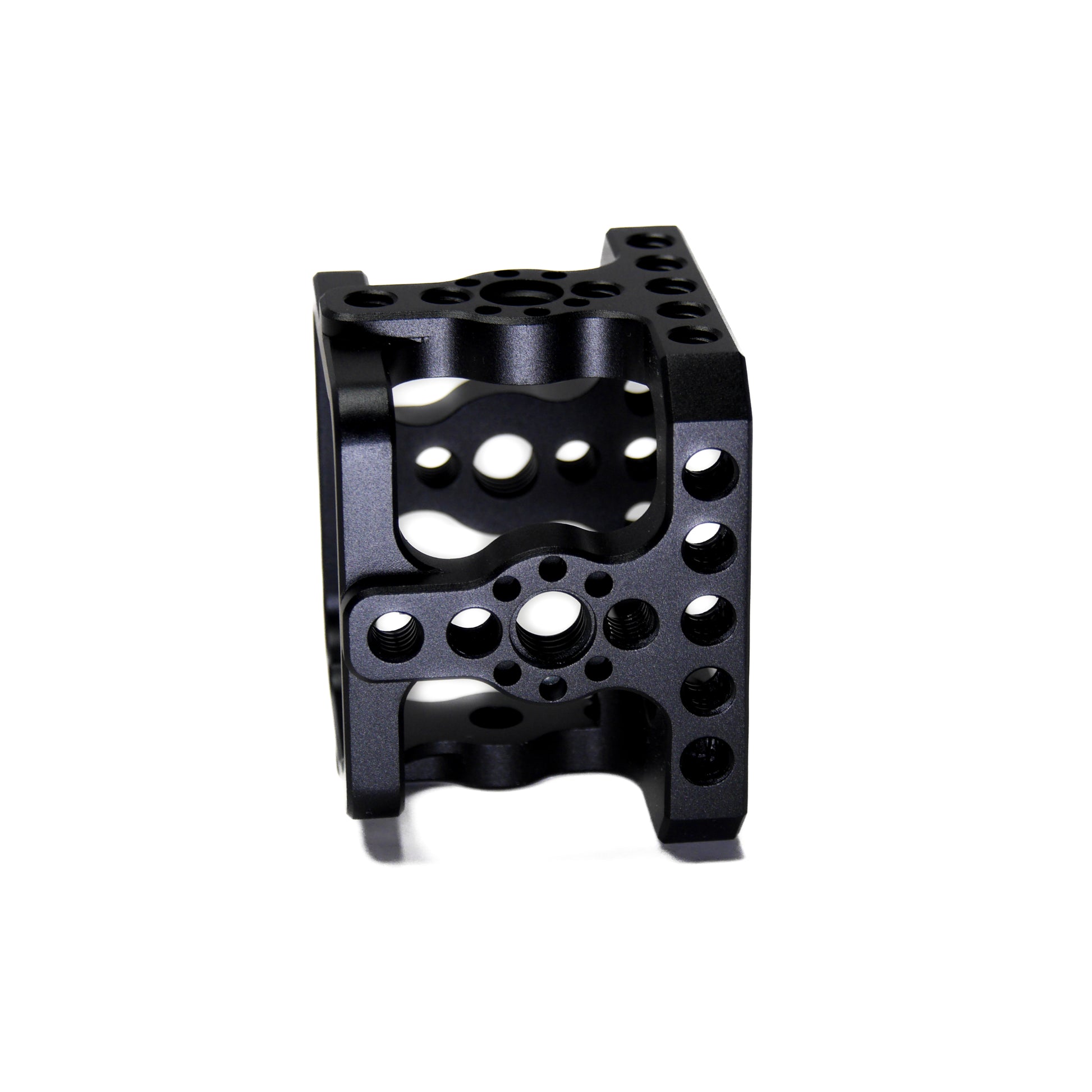

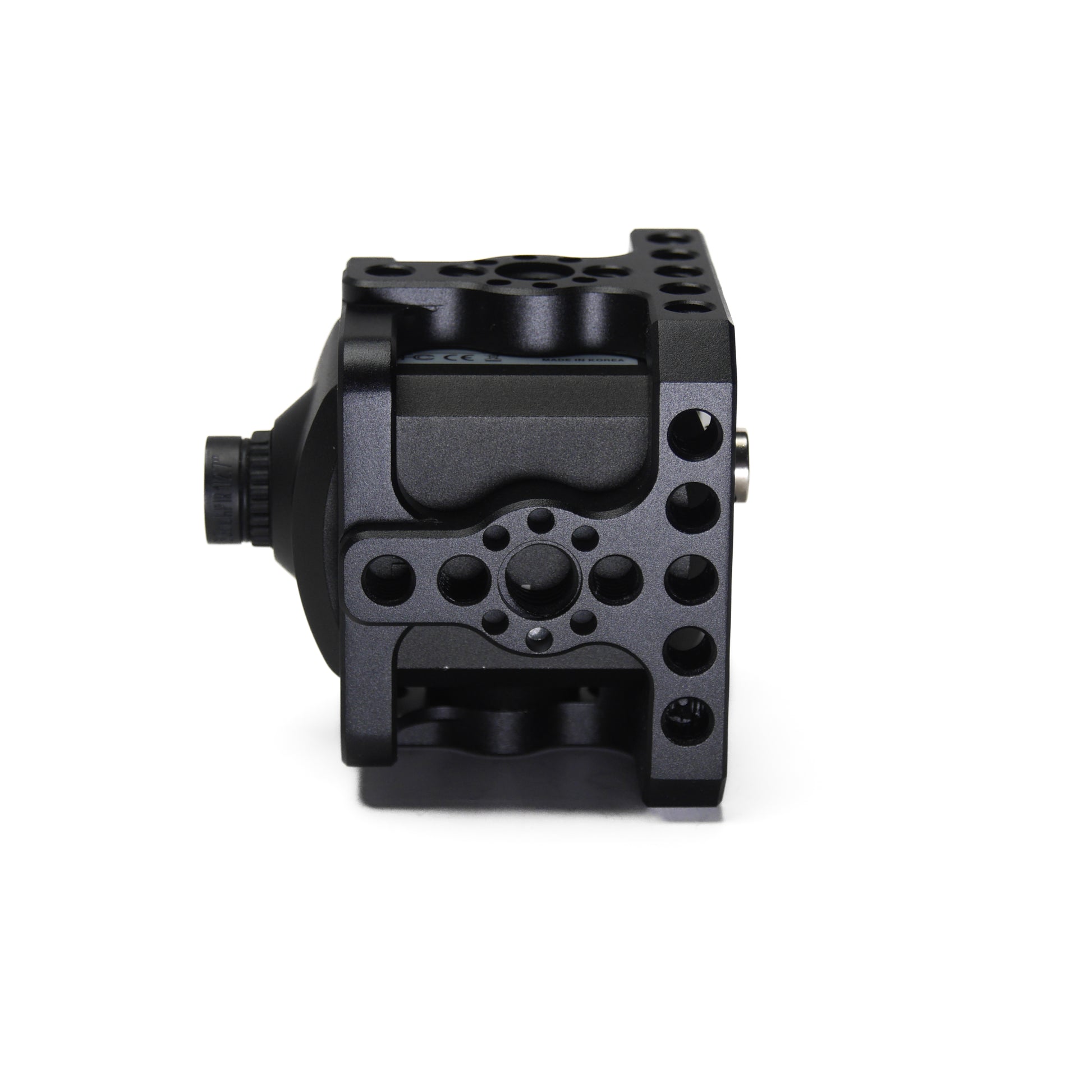

Precision-machined from 6061 aluminum and finished in durable black anodizing, the cage provides a rigid mounting platform while maintaining full access to all camera controls, ports, and connectors. Its form-fitting design closely follows the camera body, delivering maximum functionality in the smallest possible package. Compatible with Marshall CV503, CV504, CV506, and CV508 cameras, the cage is equally suited for permanent installations, mobile production rigs, and broadcast environments.
Built for real-world production use, the cage supports SDI and Hirose cable locks to help secure and protect critical connections. For CV508 users, an optional HDMI cable lock is also available. Integrated cable support helps reduce connector strain while improving reliability in demanding applications where equipment may be subject to vibration, movement, or frequent handling.
With an industry-leading 42 integrated 1/4"-20 mounting points, four 3/8"-16 mounting points with ARRI locating holes, and two M4 mounting locations, the cage provides extensive options for attaching articulating arms, wireless transmitters, antennas, microphones, mounting plates, and other accessories. An aligned 1/4"-20 mounting pattern also simplifies attachment to tripods, anti-swivel plates, and custom mounting solutions.
Whether deployed for esports broadcasts, house-of-worship installations, robotics, industrial monitoring, streaming studios, or professional POV camera systems, the XLCS Designs Camera Cage delivers the mounting flexibility, connection protection, and reliability required for professional production workflows.
Key Features
- Designed specifically for Marshall CV503, CV504, CV506, and CV508 cameras
- Engineered to maximize mounting options while protecting critical ports and cable connections
- CNC-machined from 6061 aluminum
- Durable black anodized finish
- 42 integrated 1/4"-20 mounting points
- 4 integrated 3/8"-16 mounting points with ARRI locating holes
- 2 integrated M4 mounting points for HDMI Lock (506/508)

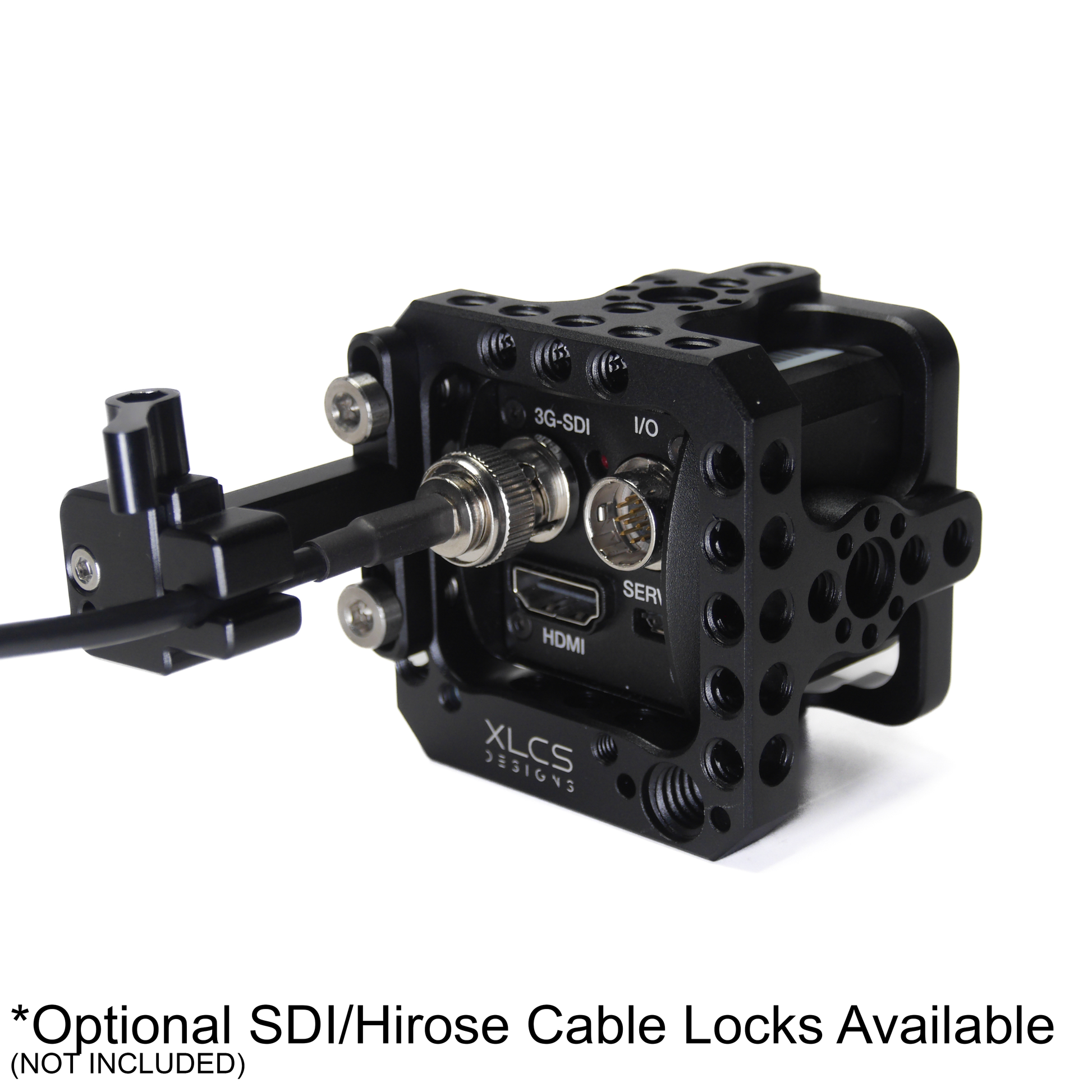

- SDI and Hirose cable lock support

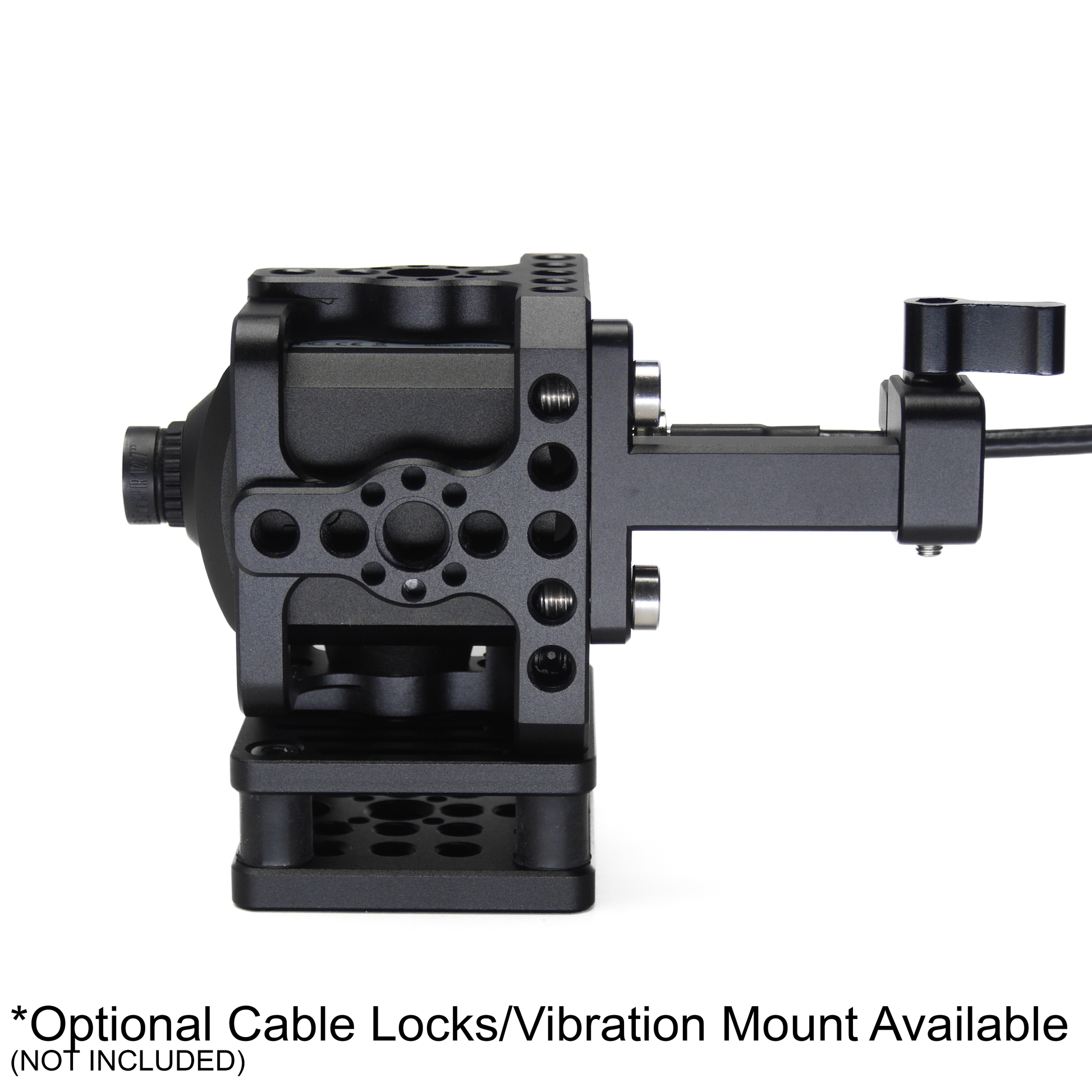

- Optional HDMI cable lock support for CV506 and 508 cameras
- Form-fitting design with full access to ports and controls
- Aligned mounting pattern for tripods and anti-swivel plates
- Compact, low-profile design for professional installation
Ideal Applications
- Broadcast POV camera systems
- Esports and gaming productions
- House-of-worship installations
- Live streaming studios
- Robotics and automation systems
- Industrial monitoring and inspection
- Permanent and semi-permanent camera installations

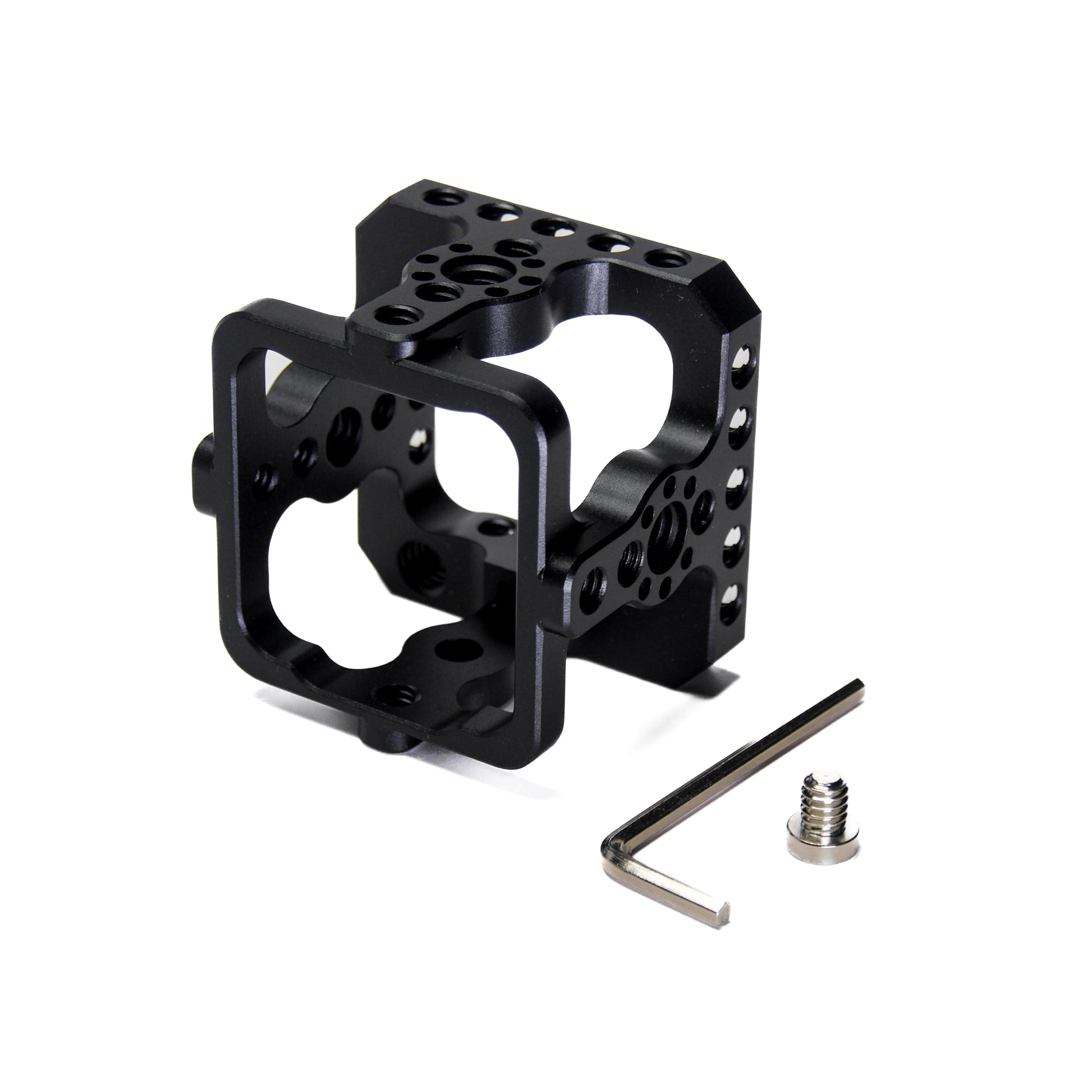

In the Box
- XLCS Designs Camera Cage for Marshall CV500-Series Cameras
- Mounting Screw
- Hex Key
